IP Address

If you own a Linksys router, the chances are that you’ve come across the IP address before. In this article, we explain how the IP address is used on Linksys routers and private networks alike.

By the time you finish reading this article, we guarantee that it will feel much less daunting than it does now.

What Is the IP Address?

There’s actually nothing special about the IP address. It’s just one of many private IP addresses, which were originally created to delay the inevitable depletion of the pool of unallocated IPv4 addresses. Why inevitable? Because there are now around 25 billion internet-connected devices in the world, but the Internet Protocol version 4, which still dominates, provides only 4,294,967,296 addresses.

Private IP addresses allow multiple internet-connected devices to share a single public IP address, and they are typically used in residential, office, and enterprise environments. belongs to the 16-bit block of private IP addresses, which includes addresses from all the way to, or exactly 65,536 addresses in total.

There are two other blocks of private IP addresses reserved by the Internet Engineering Task Force (IETF), an open standards organization that develops and promotes voluntary Internet standards: the 20-bit block and the 24-bit block. addresses in the 20-bit block range from to, while the addresses in the 24-bit block range from to

Is the IP Address Available on the Internet?

The most important thing that distinguishes public IP addresses from private IP addresses is the fact that private IP addresses, such as, are not available on the internet. Let’s say you have a local network with 20 devices. Each of the 20 devices will have a different private IP address but share a single public IP address. When you connect to the internet from one such device, only the public IP address will be exposed.

That’s because routers automatically remap one IP address space into another by modifying network address information in the IP header of packets using a method called network address translation (NAT). Without NAT, it wouldn’t be possible to have 25 billion internet-connected devices.
Check your Internet Speed
Use NetSpot to see if you have fast download and upload speeds.

Linksys Routers and the IP Address

The purpose of a router is to forward data packets between computer networks, such as the internet and a local area network (LAN). Most Linksys routers use as their default gateway, which is the address through which they can be reached on a local network. Linksys routers dynamically assign IP addresses to connected network devices according to the starting IP address.

So, a network that consists of one router and 10 network devices would start with (the default gateway of the router), and end with

What’s great about Linksys routers is that they make it possible to change the starting IP address to something else. Why would you want to do that? Well, perhaps you’re used to a certain very specific IP address range, and you don’t want to get used to a different one. If you have a Linksys router, you can change the starting IP address to, for example, by following three simple steps:

  1. Open a web browser and type the default gateway of your router, which should be
  • To find what the default gateway is on Windows, open Control Panel, tap or click Network and Internet, tap or click Network and Sharing Center in the Network and Internet window, open the Network Connections screen, locate the network connection that you want to view the default gateway IP for, double-tap or double-click the network connection, click Details, and locate IPv4 Default Gateway.
  1. Log in with as administrator. Login
  • The default password of most Linksys routers is admin. As for the user name, you can leave the field blank.
  1. Locate the starting IP address option in the settings menu and modify it according to your preference.

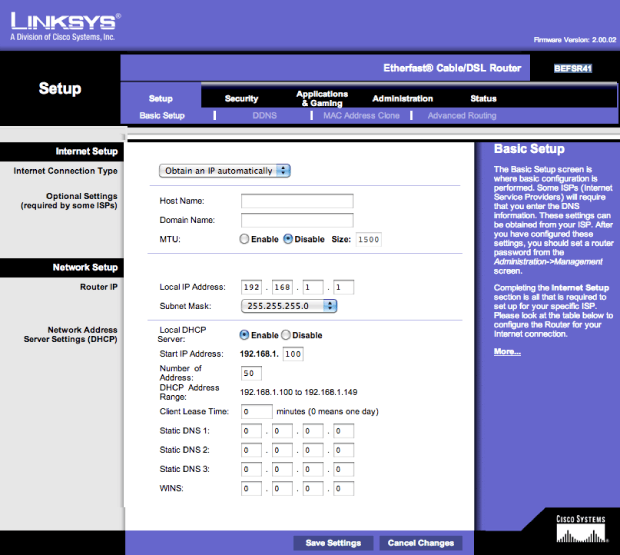

Linksys router admin
  • If you change the starting IP address to, the first connected device will have the IP address, and the 50 connected device will have the IP address.

Every time you change your router’s settings, you should verify that it still works as intended. To do that, we recommend NetSpot, a multiplatform WiFi analyzer and troubleshooting app that helps you discover issues related to your wireless network and assess the quality of the connections provided in various areas of your home or office.

NetSpot works on all computers running macOS 10.12+ or Windows 7/8/10/11, and it can collect every detail about surrounding WiFi networks and present wireless data as an interactive table with just a few clicks.

WiFi Site Survey on Android
Perform an in-depth visual analysis and troubleshoot your WiFi network with comprehensive color-coded heatmaps.
Planning & Prediction

Is It Possible to Live Without Private IP Addresses?

Yes, theoretically it’s already possible to live without private IP addresses, because the next generation of the Internet Protocol is already here, and it’s called Internet Protocol version 6 (IPv6). Unlike IPv4, which is several decades old and uses 32-bit addresses, IPv6 uses a 128-bit address, theoretically allowing for 340,282,366,920, 938,463,463,374,607,431,768,211,456 IPv6 addresses.

According to Google, over 25 percent of internet users support IPv6, which is quite impressive considering that IPv6 has been available globally since 2012. India is leading the way with an adoption rate of 66 percent, while the United States is forth with nearly 50 percent.

Because there are so many available IPv6 addresses, each and every internet-connected device could theoretically have its own public IPv6 address, which would make it possible to live without private IP addresses.


The IP address is a private IP address from the 16-bit block of private IP addresses. IP addresses like allow multiple internet-connected devices to share a single public IP address, which is how they help avoid the exhaustion of the IPv4 address space.
